RC Series |
|
|
RC SERIES |
|
|
Compact design and remote oil separator & filter makes the RotoVane RC series compressor very versatile in its applications and installation configurations |
|
|
|
|
  |
STANDARD |
|
|
Patented carbon fiber Vanes
High strength to weight ratio |
|
|
|
|
||
|
Floating Rotor and self centering bearings |
||

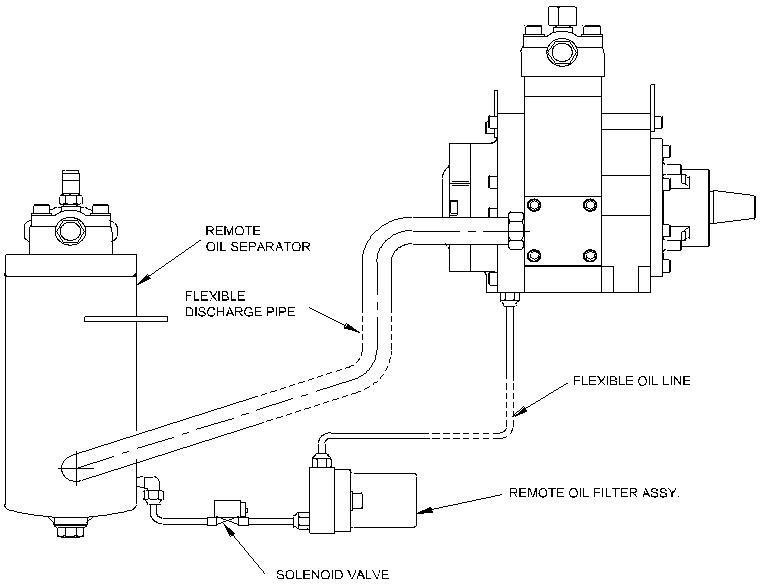

 Remote Oil filter and separator set up |
 |
Heavy duty bellows mechanical seal |
|
Pressure Plate - Vents Liquid Slugs |
||
|
MODEL |
RC450 | RC280 | RC140 |
| Maximum discharge pressure (Bar g) | 24 | 24 | 24 |
| Maximum discharge temperature (°C) | 100 | 100 | 100 |
| Maximum speed (rpm) | 4000 | 4000 | 4000 |
| Minimum speed (rpm) | 800 | 800 | 800 |
| Length (mm) | 319 | 283 | 240 |
| Width (mm) | 264 | 217 | 217 |
| Height (mm) | 197 | 180 | 180 |
| Shaft diameter (mm) | 32 | 25 | 25 |
| Weight (kg) | 41 | 25.5 | 20 |
| Connection size - Suction | 41 mm | 25 mm | 25 mm |
| Connection size - Discharge | 35 mm | 21.5 mm | 21.5 mm |
|

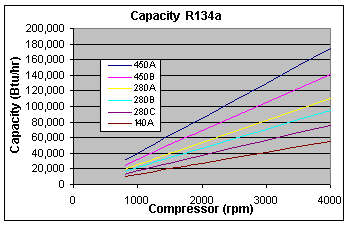

R134a @ 5/55 °C, 20°C Superheat, 0 Subcooling Low |
Capacity | Power | Mass Flow | ||||
| (kW) | (kW) | (kg/s) | |||||
| SIZE | (Btu/hr) | (hp) | (lb/m) | ||||
| 1800prm | 3600rpm | 1800prm | 3600rpm | 1800prm | 3600rpm | ||
| RC450A | 26.1 | 52.1 | 9.4 | 18.9 | 0.19 | 0.37 | |
| 88900 | 177800 | 12.7 | 25.3 | 24.6 | 49.1 | ||
| RC450B | 21.0 | 42.0 | 7.8 | 15.7 | 0.15 | 0.30 | |
| 71,600 | 143200 | 10.5 | 21.0 | 19.8 | 39.6 | ||
| RC280A | 15.8 | 31.6 | 6.0 | 12.0 | 0.11 | 0.23 | |
| 53,900 | 107700 | 8.0 | 16.1 | 15.0 | 30.1 | ||
| RC280B | 13.5 | 27.0 | 5.2 | 10.4 | 0.10 | 0.19 | |
| 46000 | 92000 | 7.0 | 13.9 | 12.7 | 25.3 | ||
| RC280C | 10.3 | 20.6 | 4.1 | 8.1 | 0.07 | 0.14 | |
| 35100 | 70200 | 5.4 | 10.9 | 9.5 | 19.0 | ||
| RC140A | 8.0 | 16.1 | 3.0 | 6.1 | 0.06 | 0.12 | |
| 27400 | 54800 | 4.1 | 8.2 | 7.9 | 15.8 | ||
|

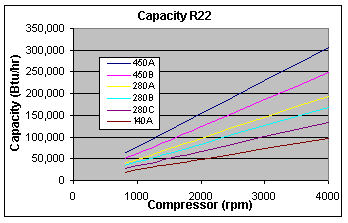

R22 @ 5/55 °C, 20°C Superheat, 0 Subcooling Low |
Capacity | Power | Mass Flow | ||||
| (kW) | (kW) | (kg/s) | |||||
| SIZE | (Btu/hr) | (hp) | (lb/m) | ||||
| 1800prm | 3600rpm | 1800prm | 3600rpm | 1800prm | 3600rpm | ||
| RC450A | 40.4 | 80.9 | 13.8 | 27.6 | 0.27 | 0.54 | |
| 137900 | 275900 | 18.5 | 37.0 | 35.6 | 71.3 | ||
| RC450B | 31.6 | 63.1 | 11.2 | 22.4 | 0.21 | 0.42 | |
| 107700 | 215400 | 15.0 | 30.0 | 27.7 | 55.4 | ||
| RC280A | 23.6 | 47.2 | 8.8 | 17.5 | 0.16 | 0.31 | |
| 80500 | 161100 | 11.7 | 23.5 | 20.6 | 41.2 | ||
| RC280B | 21.5 | 42.9 | 7.7 | 15.4 | 0.14 | 0.29 | |
| 73300 | 146500 | 10.3 | 20.6 | 19.0 | 38.0 | ||
| RC280C | 15.8 | 31.6 | 5.9 | 11.8 | 0.10 | 0.20 | |
| 53900 | 107700 | 7.9 | 15.8 | 13.5 | 26.9 | ||
| RC140A | 12.5 | 24.9 | 4.3 | 8.7 | 0.08 | 0.17 | |
| 42500 | 85000 | 5.8 | 11.6 | 11.1 | 22.2 | ||
|
Corresponding Frick Model Numbers to RotoVane RC Model Numbers |
Corresponding Rotocold Model Numbers to RotoVane RC Model Numbers |
||
| Frick | RotoVane | Rotocold | RotoVane |
| RVC102 | RC450A | R7 | RC450A |
| RVC82 | RC450B | R7.1 | RC450A |
| RVC60 | RC280A | R8 | RC450A |
| RVC55 | RC280B | R8.1 | RC450A |
| RVC44 | RC280C | R7.5 | RC450B |
| RVC32 | RC140A | R8.5 | RC450B |
|
For other model number please contact Jotek at: |
R5 | RC280A | |
| R5.1 | RC280A | ||
| R6 | RC280A | ||
| R6.1 | RC280A | ||
| R5.3 | RC280B | ||
| R6.3 | RC280B | ||
| R5.2 | RC280C | ||
| R6.2 | RC280C | ||
| R3 | RC140A | ||
| R3.1 | RC140A | ||
| R4 | RC140A | ||
| R4.1 | RC140A | ||
|
|
|||
|
For further information please contact Copyright © 2004 Jotek Ltd. All rights reserved. |
