RT SERIES
Packaged Compressor

Same performance as RC450



Comes complete with:

  • Oil Separator

  • Oil Filter

  • Service valves

  • Temperature cut out switch

STANDARD

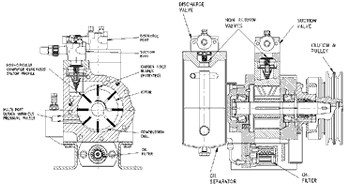

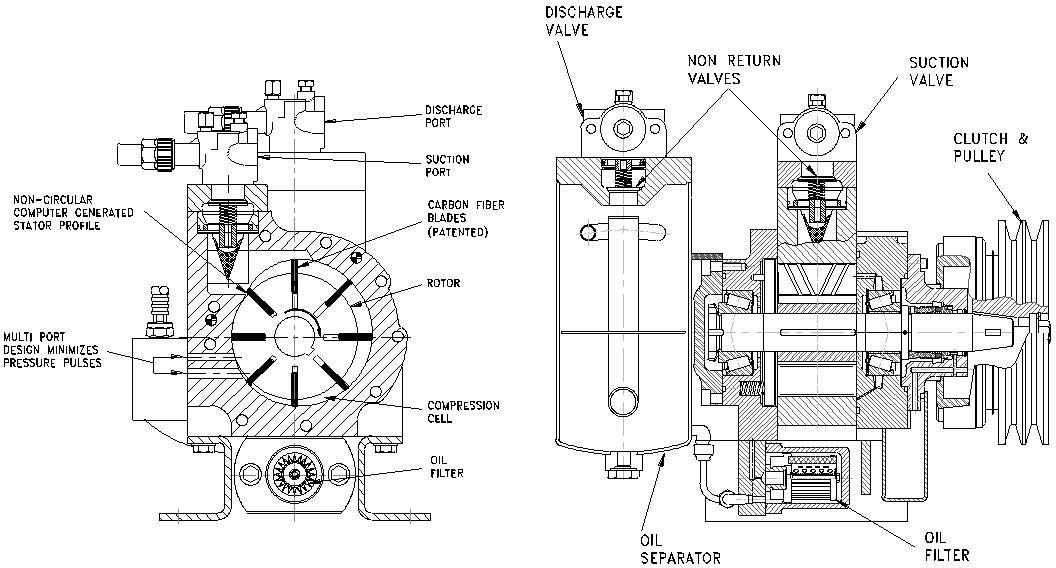

Patented carbon fiber Vanes



High strength to weight ratio

Floating Rotor and self centering bearings


Heavy duty bellows mechanical seal

Two Sizes available - RT450A and RT450B

Non Return Valves (Suction & Discharge)



Pressure Plate - Vents Liquid Slugs



OPTIONS

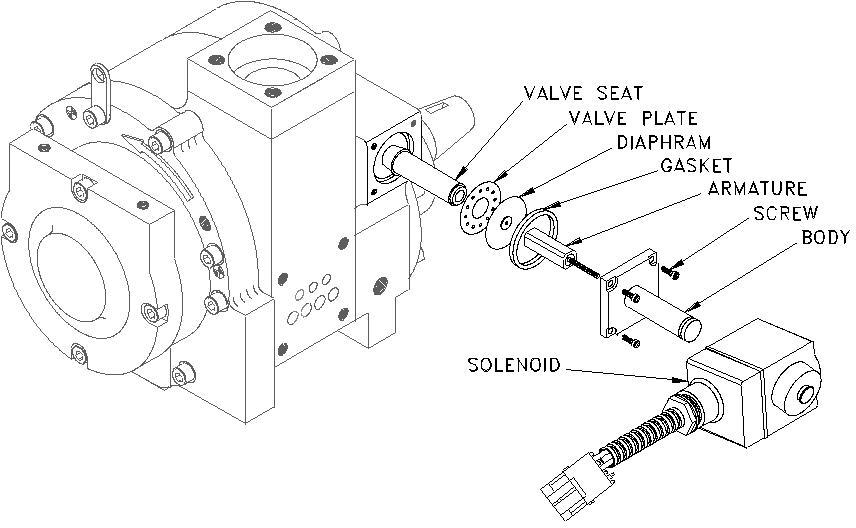

OPTION: CAPACITY CONTROL PORT OPTION: REVERSE ROTATION

Compressors can be further customized with:

  • Clutch pulley

  • Straight bore shaft

  • Mounting plates

  • Pressure Switches

  • Pressure Transducers

  • Pressure relief valves

  • Wiring harnesses

  • Suction & Discharge tubes

  • Remote mounted oil separator



MODEL

 RT450

Maximum discharge pressure (Bar g)

 24
Maximum discharge temperature (°C) 100
Maximum speed (rpm) 4000
Minimum speed (rpm) 800
Length (mm) 457
Width (mm) 284
Height (mm) 395
Shaft diameter (mm) 35 (4:1)
Weight (kg) 58
Connection size - Suction 35 mm
Connection size - Discharge 28 mm

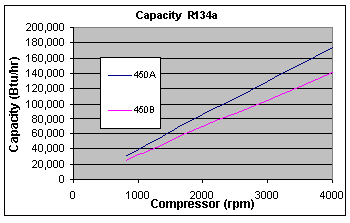

R134a

@ 5/55 °C, 20°C Superheat, 0 Subcooling Low

   Capacity Power Mass Flow
  (kW) (kW) (kg/s)
SIZE (Btu/hr) (hp) (lb/m)
  1800prm 3600rpm 1800prm 3600rpm 1800prm 3600rpm
RT450A 26.1 52.1 9.4 18.9 0.19 0.37
88900 177800 12.7 25.3 24.6 49.1
RT450B 21.0 42.0 7.8 15.7 0.15 0.30
       71,600 143200 10.5 21.0 19.8 39.6

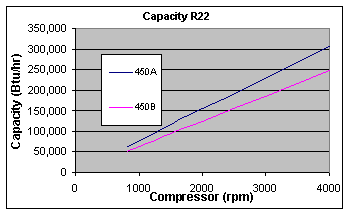

R22

@ 5/55 °C, 20°C Superheat, 0 Subcooling Low

   Capacity Power Mass Flow
  (kW) (kW) (kg/s)
SIZE (Btu/hr) (hp) (lb/m)
  1800prm 3600rpm 1800prm 3600rpm 1800prm 3600rpm
RT450A 40.4 80.9 13.8 27.6 0.27 0.54
137900 275900 18.5 37.0 35.6 71.3
RT450B 31.6 63.1 11.2 22.4 0.21 0.42
107700 215400 15.0 30.0 27.7 55.4


Corresponding Rotocold Model Numbers to

RotoVane RT Model Numbers
Rotocold RotoVane
RTC14 RT450A
RTC13 RT450B
